MySQL Performance tuning constant references vs index merges and intersects

I had a query that, after adding indexes, was taking anywhere from 1.5 to 5ms to return on my local machine. In production and staging environments it was taking 500+ms to return.

The query was producing different optimizer paths:

The good optimizer:

*************************** 2. row ***************************
           id: 1
  select_type: SIMPLE
        table: activities
         type: ref
possible_keys: index_activities_on_is_archived,index_activities_on_equipment_id,index_activities_on_date_completed,index_activities_on_shop_id
          key: index_activities_on_shop_id
      key_len: 5
          ref: const
         rows: 1127
     filtered: 100.00
        Extra: Using where

The bad optimizer:

*************************** 2. row ***************************
           id: 1
  select_type: SIMPLE
        table: activities
         type: index_merge
possible_keys: index_activities_on_is_archived,index_activities_on_equipment_id,index_activities_on_date_completed,index_activities_on_shop_id
          key: index_activities_on_shop_id,index_activities_on_is_archived
      key_len: 5,2
          ref: NULL
         rows: 1060
        Extra: Using intersect(index_activities_on_shop_id,index_activities_on_is_archived); Using where

My first thought was it might have been the MySQL versions since I was running 5.5 locally and 5.0 in production, but that turned out not to be the case.

Next was to make sure my database was an exact replica of the one in production. After ensuring this I still ended up with the same results from the optimizer.

My last guess was server configuration. The issue ended up being query-cacheing being turned off in production and staging but not on my local machine. Turning this on, restarted mysqld, and re-running the query produced the good optmizer results on both my local machine and production.

Why the Cloud isn't for your Startup

The Lure

You're a new startup, you're tight on funds and don't have the server knowledge to run your own servers, but you plan on growing exponentially very quickly. You have three choices:

  • Suck it up and learn some sysadmin skills (or hire one)
  • Use a PaaS provider (such as EngineYard, Heroku, or EC2)
  • Use a mix of both

But how do you know which path to take?

I'll be using my experience running Servly for most of this article. I've been using dedicated servers and virtual machines and the cloud for over 6 years with Servly and other business ventures.

How valuable is your time when shit hits the fan?

When using services like EC2 and Amazon, you need to be aware that the support levels are different versus a regular dedicated hosting provider. The last time I had a ticket in with Heroku it had taken well over 4 hours to even get a response.

Support with a dedicated server is different. Of the two hosting providers that I've been using (WooServers and Voxel), I have been given top notch support. Tickets are answered in minutes, and 911's are answered in seconds. Large conglomerate cloud providers just can't beat that service.

There are other considerations to make as well. With traditional cloud offerings (EC2, Rackspace, EngineYard) and dedicated servers you are given root access to the servers, but with Heroku you're locked in to their read-only file system and configuration. You miss out on the ability to tweak your configuration for maximum performance.

With dedicated hardware you can control your infastructure in a much more fine grained way than with a PaaS offering. All of this ties back into support; support that is familiar with the hardware and support that isn't just working for the lowest common denominator in terms of performance based across a massive cloud. With dedicated hardware you get the control and support that one would expect from a paid service, while still being able to customize your system to YOUR needs, and not the needs of the baseline.

Benchmark like crazy

Besides knowing how your application's innards look you also need to know how it performs. Find bottlenecks, memory leaks, optmizations you can make, database indexes you might be missing, etc.

Servly's main focus is the dashboard, and the API server's use to communicate their status updates. Every ~5 minutes the server gets bombarded with hundreds of concurrent requests all vying for database access.

One of the issues I noticed was the occasional 502 Gateway error. There were two problems:

  • Not enough nginx workers
  • Not enough unicorn works with a high timeout

There is no magic formula to find out what the right balance is without running your own tests. When I started testing a simple

ab -c 100 -n 1000 http://foobar.servly.com/

was returning about 78 failed requests out of 1000. Good, but not good enough.

Editing the nginx configuration several more times I got rid of the writev() failed (107: Transport endpoint is not connected) while sending request to upstream error. The nginx worker count is now at 16.

The next error was a upstream timeout that would ocassionally happen during that 5 minute burst period. Modifying the number of unicorn slaves to 24, upping the backlog, and tweaking the timeout has reduced all of the gateway errors.

I was now able to scale up from 100-1000 concurrent requests without any failures being reported from ab.

Scaling on the cloud vs bare metal

For very small projects, or throwaway prototypes, Heroku and other free services are great. However once you're project starts growing, the costs can grow exponentially.

Currently Servly runs on:

  • 2.6Ghz Quadcore i5
  • 8GB of RAM
  • Intel X25 SSD. This provides excellent throughput for both the database and the workers. I also have a spare drive to do backups to (as well as offsite backups).
  • Server is hosted at WooServer

I also have a MySQL slave for backups in addition to S3 and several spare VM's running as a standby.

Software wise there are:

  • 24 Unicorn slaves
  • 10 Background workers
  • About 3GB of data is being stored in memory from the database cache

Cost Comparisons

Heroku

  • 24 Dynos: $827
  • 10 Workers: $323
  • Fugu Database: $400

Total: $1,587/mo

Engine Yard

  • 1 Extra Large instance

Total: $959

I could've gone with a smaller medium instance, however I need the IO to be as high as possible. Even on this it's still going to be pretty terrible, this also applies to Heroku's offerings as well, since the Fugu database is on the very conservative side and both are layers ontop of Amazon's EC2. [1]

Dedicated

  • 2.6ghz Quadcore i5
  • 8GB RAM
  • 80GB Intexl X-25 SSD
  • 80GB Secondary drive
  • 5TB of bandwidth

Total: $145/mo

For the price of running Heroku relatively maxed out on dyno's, I could get 11 dedicated servers. Thats roughly:

  • 28Ghz on 44 cores
  • 88GB of RAM
  • 880GB of SSD storage
  • 880GB of backup storage
  • 55TB of transfer

But I don't know anything about servers

Learn. You may stumble at first, but there are plenty of outlets to get help at. You can go on Freenode's IRC, Mailing lists, and Stack Exchange. You could even hire a part time sysadmin. Once you really start scaling the cost of using Heroku versus what you could get with bare metal becomes so great that you could eventually just hire a full time sysadmin to manage your dedicated servers.

What are others doing?

GitHub was a large player to move from the cloud at EngineYard to a more mixed infastructure of bare metal and spot instances to Rackspace. [2] They were able to get nearly 6x the RAM and nearly 4x the CPU cores; one of their main focal points was cost in addition to control, flexibility, capacity.

There are also plenty of success stories over at Heroku's success page: http://success.heroku.com/

What the cloud is good for

Temporary data crunching. Have a sudden spike in your job queue? Crank up some more virtual machines to plow through them, then turn them off to save money. All of this can be automated with tools like Blueprint, Puppet, and Chef.

Backups. With the price of S3 being around 8 cents per GB, its entirely feasable to back everything up off site for disaster recovery to the cloud.

Bottom Line

You and your team need to evaluate your business needs and decide on what option is best for your company. If you already have a competent sysadmin or a developer who has played both roles before, it would make much more sense to use bare metal. If no one in your team has the experience, or time, to learn devops, then a PaaS solution like Heroku would be a more logical choice.

[1] http://www.krenger.ch/blog/amazon-ec2-io-performance/

[2] https://github.com/blog/493-github-is-moving-to-rackspace

Using RSpec to test C code

I was working on a C assignment for school and wanted an easy way to test the output of a program running against multiple test cases.

Using RSpec I came up with the following spec:

describe "Calculator "do
    before(:all) do
        `make clean; make;`
    end
    it "should accept p1" do
        `./calc < testing/p1.cal`.should include "accept"
    end

    it "should reject p2" do
        `./calc < testing/p2_err.cal`.should include "reject"
    end

    it "should reject p3" do
        `./calc < testing/p3_err.cal`.should include "Variable a duplicate declaration"
    end

    it "should reject p4" do
        `./calc < testing/p4_err.cal`.should include "Variable b uninitiated at line 5"
    end

    it "should accept p5" do
        `./calc < testing/p5.cal`.should include "accept"
    end

    it "should accept p6" do
        `./calc < testing/p6.cal`.should include "accept"
    end

    it "should reject p7" do
        `./calc < testing/p7_err.cal`.should include "syntax error at line 9"
    end

    it "should reject p8" do
        `./calc < testing/p8_err.cal`.should include "Variable d undeclared"
    end

    it "should reject p9" do
        `./calc < testing/p9_err.cal`.should include "divide by zero at line 7"
    end

end

I was then able to run all my tests with a single command and get informative output.

.........

Finished in 0.49705 seconds
9 examples, 0 failures

OSX + Vim + CTags (Exuberant) for fast context switching in large projects

Installing CTags (Exuberant)

Lets first install ctags-exuberant using Homebrew

brew install ctags-exuberant

Remember the path that ctags got installed to, with version 5.8 on my machine it was in:

/usr/local/Cellar/ctags/5.8/bin/ctags

Setting up Vim/MacVim

Download the TagList plugin from VimOnline.

In your .vimrc file add the following:

let Tlist_Ctags_Cmd='/usr/local/Cellar/ctags/5.8/bin/ctags'

let g:Tlist_Ctags_Cmd='/usr/local/Cellar/ctags/5.8/bin/ctags'

fu! CTagGen()
    :execute "!" . g:Tlist_Ctags_Cmd .  " -R ."
endfunction

nmap <silent> :ctg :call CTagGen()

Open up vim/MacVim, and type

:ctg

You can then go to a controller for example:

Type in:

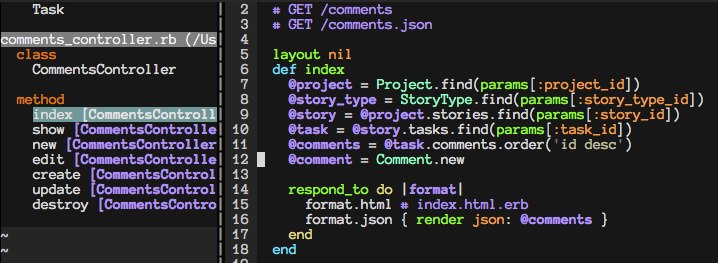

:Tlist

And the follow should appear.

ctag list

Lets say I've got my cursor on StoryType and I want to go to the model, I can just hit Ctrl+] to get there. You can now do this for any method (helpers, methods, anything thats in your ctags file!).

Cucumber and Mysql2::Error Lock when deleting records

I was writing some cucumber features for reru_scrum when I ran into an issue with destroying user records and Mysql2 throwing a Lock error.

The full error:

Mysql2::Error: Lock wait timeout exceeded; try restarting transaction: UPDATE `users` SET `last_sign_in_at` = '2011-11-22 00:06:32', `current_sign_in_at` = '2011-11-22 00:11:28', `sign_in_count` = 3, `updated_at` = '2011-11-22 00:11:28' WHERE `users`.`id` = 1

A simple solution is to use the database_cleaner gem.

Inside your features/support/env.rb file:

begin
  require 'database_cleaner'
  require 'database_cleaner/cucumber'
  DatabaseCleaner.strategy = :truncation
rescue NameError
  raise "You need to add database_cleaner to your Gemfile (in the :test group) if you wish to use it."
end

A good idea is to create the before and after hooks to use the DatabaseCleaner.start and DatabaseCleaner.clean methods.

Inside features/support/hooks.rb:

Before do
  DatabaseCleaner.start
end

After do |scenario|
  DatabaseCleaner.clean
end

You should then be able to run your features and have your database cleaned between steps.
